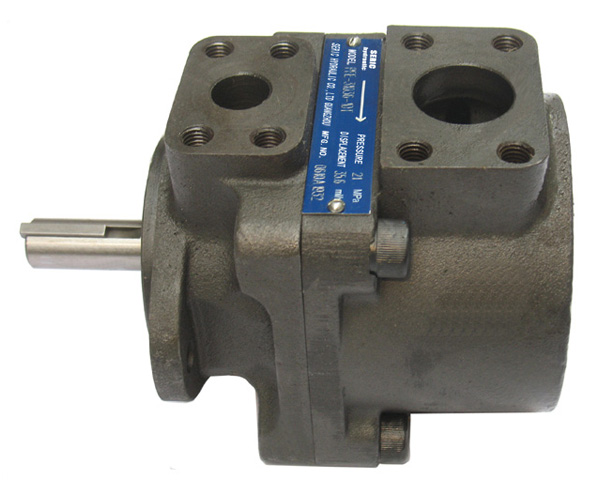

These pumps are of high pressure and high performance, which have been developed especially for low noise operation. To comply with a variety of applications including injection moulding machines, The intergral driving parts of the pumps are combined into a kit form and available for supply as a cartridge kit. Therefore, the replacement of the driving parts can be done easily.
子母葉片泵提供低噪音、才壽命、高生產率和應用靈活。
Technical date 參數
| Model Series | Code |
Displacement ml/r(in3/r) |
Max. MPa |
Output flow (L/min) |
Driving power(KW) |
Max. r/min |
| PFE-21 | 005 | 5.0 (0.3) | 21 | 4.8 | 3.5 | 3000 |
| 006 | 6.3 (0.378) | 21 | 5.8 | 4.0 | 3000 | |
| 008 | 8.0 (0.48) | 21 | 7.8 | 5.5 | 3000 | |
| 010 | 10.0 (0.6) | 21 | 9.7 | 6.5 | 3000 | |
| 012 | 12.5 (0.75) | 21 | 12.2 | 8 | 3000 | |
| 016 | 16 (0.96) | 21 | 15.6 | 10 | 3000 | |
| PFE-31 | 016 | 165(1.01) | 21 | 16 | 6.5 | 2800 |
| 022 | 21.6 (1.322) | 21 | 23 | 10 | 2800 | |
| 028 | 28.1 (1.72) | 21 | 33 | 14 | 2800 | |
| 036 | 35.6 (2.134) | 21 | 43 | 18 | 2800 | |
| 044 | 43.7 (2.26) | 21 | 55 | 23 | 2800 | |
| PFE-41 | 029 | 29.3 (1.76) | 21 | 34 | 14 | 2500 |
| 037 | 36.6 (2.21) | 21 | 45 | 18 | 2500 | |
| 045 | 45.0 (2.78) | 21 | 57 | 23 | 2500 | |
| 056 | 55.8 (3.45) | 21 | 72 | 30 | 2500 | |
| 070 | 69.9 (4.318) | 21 | 91 | 37 | 2500 | |
| 085 | 85.3 (5.12) | 21 | 114 | 47 | 2000 | |
| PFE-51 | 090 | 90 (5.4) | 21 | 114 | 47 | 2200 |
| 110 | 109.6 (6.576) | 21 | 141 | 58 | 2200 | |
| 129 | 129.2 (7.759) | 21 | 168 | 69 | 2200 | |
| 150 | 150.2 (9.02) | 21 | 197 | 80 | 1800 |
